Do you need a ground wire for a dimmer switch?

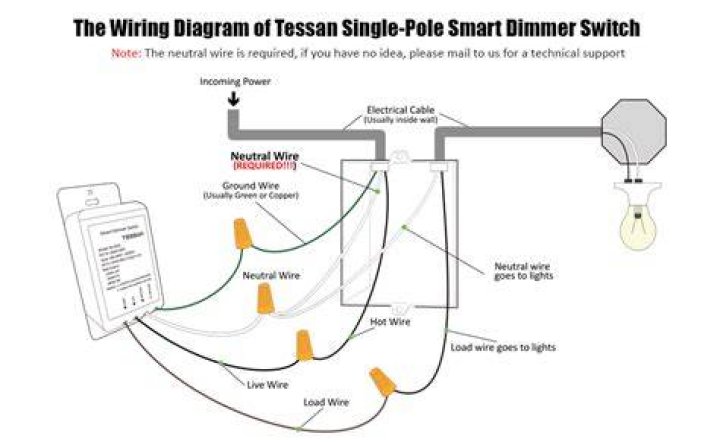

New dimmers have either a green grounding wire or a green ground screw that you'll have to connect to a grounding source if one is available. If testing reveals your box isn't grounded, you can still install the dimmer, but you must use a plastic cover plate and make sure no bare metal parts are exposed.

Besides, what if there is no green ground wire?

If you don't have a wire coming in to hook your ground to, what you do is you take your ground wire which is either a solid copper or a green wire, you'll take that ground wire and you wrap it around the ground screw. You can run it just on a two-wire system with your black and your white wires.

One may also ask, what happens if I don't ground a light switch? Going without a ground wire When you screw the light switch in, it will make contact with the box, and as long as the box is grounded, it will pick up ground that way. If the box isn't grounded, the switch will still work.

Also Know, can a dimmer switch be installed anywhere?

Replacing a standard single-pole or three-way switch with a dimmer switch is no different than replacing a standard switch. Remember: Dimmer switches don't work on most fluorescent fixtures, and low-voltage lighting requires special low-voltage dimmers. Turn off the power to the switch at the circuit or fuse panel.

How do you ground a light without a ground wire?

Wrap the bare ground wire you attached to the electrical box around the green ground screw attached to the strap. Wrap the bare or green wire from the ceiling light around the same screw. Tighten the screw on the strap. Match the white wire from your new ceiling light fixture to the white wire from the ceiling.

How does a dimmer switch work diagram?

The diagram below shows this sixtieth-of-a-second cycle. A modern dimmer switch "chops up" the sine wave. If the dimmer is turned to a brighter setting, it will switch on very quickly after cutting off. The circuit is turned on for most of the cycle, so it supplies more energy per second to the light bulb.

How does a 3 way dimmer switch work?

With a standard single-pole dimmer, a single switch controls the light. With a three-way dimmer, you can control a light with two switches. You will need a three-way dimmer and a three-way switch. This lets you dim from one location and turn the lights on and off from another.

How do you ground a light switch in a plastic box?

Plastic electrical boxes have their pluses and minuses. Because they are plastic, there is no need to attach a ground wire to it. Since it is made of a non-conductive material, switches and outlets cannot short out if they touch the side of the box.

What is common wire?

A common wire is a more general term and simply refers to the 0 Volt wire of a circuit, either electrical or electronic.

How do I test a dimmer switch?

Attach one lead of the 110-volt test cord to one of the dimmer switch's black wires. Turn the function switch on your DMM to the AC voltage position. If your DMM is a manually ranging meter, set the range selector switch to the 150-volt range.

How do I know if my electrical box is grounded?

With the circuit energized, touch one end of the tester to the hot wire, which should go to the smaller slot on the outlet, and one end of the tester to the electrical box (see photo below left). If the tester lights up, the box is grounded.

What do you do when the ground wire is green?

Green. Green indicates the grounding of an electric circuit. A green wire can connect only to another green wire and should never connect to any other color wire. Green wires connect to the grounding terminal in an outlet box and run from the outlet box to the ground bus bar within an electric panel.

Can you connect two ground wires together?

There is only one green ground screw connection on an outlet. The two ground wires must be wire-nutted together along with another 6-inch length of green or bare ground wire known as a pigtail. A grounded electrical outlet has three holes to provide a ground connection for three-prong plugged devices.

How do you fix an ungrounded outlet?

The ideal way to repair an ungrounded 3-prong outlet is to establish a continuous electrical path back to the main panel. If the outlet is installed in a metal box and that metal box has metal conduit wiring (BX cable) all the way back to the panel, then you can ground your outlet with just a little work.

Do I need to ground a light switch?

If you are replacing a switch a ground is not required, as per the above exception. However, if you're installing a switch; replacement or otherwise, into a metal box that is grounded. The switch will be ground via the devices yoke and mounting screws. So if the metal box is grounded, the switch is also grounded.

Can I install a 3 prong outlet without ground?

3-prong outlets without ground are legal if they are GFCI protected, with "GFCI protected" and "No equipment ground" stickers.

Do I need an electrician to change a light switch?

Replacing light fixturesGenerally speaking, a homeowner can replace light fixtures. If the amperage isn't high enough to cover the wattage of your new light, you will need an additional wire run from your circuit breaker. It's best to hire a licensed and qualified electrician for such a task.

What happens if you put a non dimmable LED bulb in a dimmer?

Dimming LED lamps can save energy and changes the visual appearance and mood of your space. You can use a dimmable LED lamp in a non-dimmable circuit. You should NOT use a non-dimmable lamp in a dimmable circuit as it may cause damage to the lamp and or circuit.

Do you have to change the dimmer for LED lights?

Switching out incandescent light bulbs for LED bulbs is a great way to cut down on your monthly energy bills. But if you use dimmers in your home, you're likely wondering: Do LED lights work on a dimmer? Well, the answer depends: Yes, LED lights work on a dimmer when: You have “dimmable” LED light bulbs.

Do you have to use a special dimmer switch for LED lights?

Do I need a special dimmer switch for LED light bulbs? While most LED bulbs are now dimmable, not all of them are and not all of them dim in the same manner Since LEDs consume such a low wattage, many types of dimmers do not function with LED in the same way that they do with high wattage load incandescents.

Why does my light switch have 3 wires?

The switch in question is a single pole. From it, there is 3 wire cable that leads to a light which then connects to other lights controlled by their own switches. There's no three way set up and this isn't a switch loop either. Plus, The two black wires are using the same terminal.

How much does it cost to install a dimmer switch?

The more expensive dimmer switches often include features such as a decorative styles and finish options. It is also important to consider the labor and supply costs that are required to install these switches. The total labor costs for the installation of a dimmer switch range from approximately $58 to $135 per job.

What makes a light dimmable?

So a dimmable LED light fixtures must have the ability to}: Deal with a wide range of source voltage including part-formed sine waves, which is not easy for the control logic. Detect from the source voltage the light level that an individual wants, and then give that light level.
