What is a line stop valve?

Line stopping or line plugging is a means of isolating a piping system to provide a shut off where none exists. This process serves as a control, or temporary valve, that can be removed after alterations or valve replacements have been made.

Thereof, how does a line stop work?

Line Stop. Line Stops are used to temporarily shut down a pipeline system to complete modifications or repairs. Line Stops allow a system to operate as usual without any interruption of service. When the necessary work has been accomplished, the Line stop head is removed, and the completion plug is set.

Similarly, what is bypass line in piping? A bypass is a system of pipes and valves - a manifold - to divert the flow around a specific piping or valve structure. It's also a temporary diversion of flow around a part of a water or sewer system that allows flow to continue when the primary line is blocked or undergoing repair or rehabilitation.

Similarly, it is asked, how do I install a line stop?

Install water line stop fitting.
Make tap on water main.
Insert line stopping plug in housing.
Mount and activate line stopping equipment.
Perform required service and installation.
Remove line stopping equipment and install blind flange.

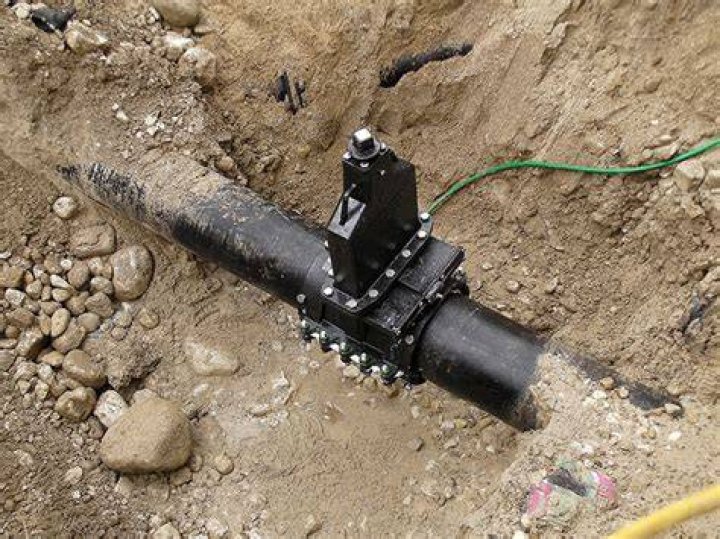

What is an insertion valve?

The insertion valve is permanently installed on top of the pipe, allowing for system control and maintenance in the same manner as a resilient seated gate valve.. Insertion valves allow utilities to perform maintenance without shutting down large portions of their water distribution systems.

How does an insertion valve work?

Benefits of Insertion ValvesCrews make a single circular hole cut into the water main under full pressure, with no reaming. The insertion valve is permanently installed on top of the pipe, allowing for system control and maintenance in the same manner as a resilient seated gate valve..

Why is pump recirculation required?

Recirculation is defined as returning the pump discharge flow to the point where the pump has suction so that a minimum flow requirement of the pump is ensured through the pump (even when there is low/no load demand to the system from the pump).

What does bypass valve do?

A compressor bypass valve (CBV), also known as a pressure relief valve or diverter valve, is a manifold vacuum-actuated valve designed to release pressure in the intake system of a turbocharged vehicle when the throttle is lifted or closed.

What is minimum flow?

The term minimum flow generally meant the lowest continuous flow at which the pump was permitted to operate. These values did not take into account duration, vibration level or other factors. Today, we have minimum flow values for continuous operation, for intermittent operation and for permissible temperature rise.

What is turbo bypass valve?

A blow-off valve (BOV), dump valve or compressor bypass valve (CBV), is a pressure release system present in most turbocharged engines. Its main purpose is to take the load off the turbocharger when the throttle is suddenly closed.

What is bypass flow?

A simple definition of a "bypass flow" condition is that the term refers to a requirement that water which would otherwise be diverted in priority instead be "bypassed" from the diversion and left in the stream.

Why recirculation line is required in pumps?

Minimum recirculation line is provided mainly for centrifugal pump with constant speed drive based on the system and vendor information. There are two types of minimum continuous flow required by the pump (Stable and Thermal). Below the minimum continuous thermal flow, temperature of fluid will rise at faster rate.

How does bypass valve work?

A bypass valve is different from a blow-off valve because it doesn't vent any air to atmosphere. Instead, it recirculates the air back into the intake before the turbo or supercharger inlet, but after the airflow sensor. “A bypass valve is typically a recirculation valve.

How does automatic bypass valve work?

Bypass valves are valves fitted to heating systems between the boiler and the radiators. An auto bypass will then begin to open as the system water pressure is increased due to low flow through the heating circuit. Automatic bypass valves are adjustable to allow for correct flow rates required by boiler manufacturers.

What is a decoupler?

Decoupler: Common Chilled Water Pipe between Primary and Secondary loops.

What is a tapping sleeve and valve?

A tapping sleeve and valve allows access to and branching off of an existing water main. The word 'tapping' refers to penetrating the existing water main.

How do you tap a live water main?

The Art of Tapping

The tapping tool is specific to the water main material.
Ensure the valve stop threads match those of the tap.
Use gaskets between the tapping machine and the saddle, and between the saddle and the pipe.
Keep the outside of the pipe and the tapping drill disinfected and clean while tapping.
