What is a pcmcia adapter?
Ava Hall .
Furthermore, what is the pcmcia slot for on my TV?
Probably a Conditional Access Module slot. You'd get an adaptor that fits in there based on a PCMCIA card which you then put a subscriber card into, so you can subscribe to pay TV via Freeview (Freeview Plus I think it was called?).
Likewise, what type of pcmcia slot uses the PCI Express standard? In 2003, the PCMCIA standard was the ExpressCard. They can use either a single channel of PCI-E or USB 2.0. In 1995 PCMCIA established a standard called CardBus. These had the same form as older cards and used PCI technology.
Beside this, what is the full meaning of pcmcia?

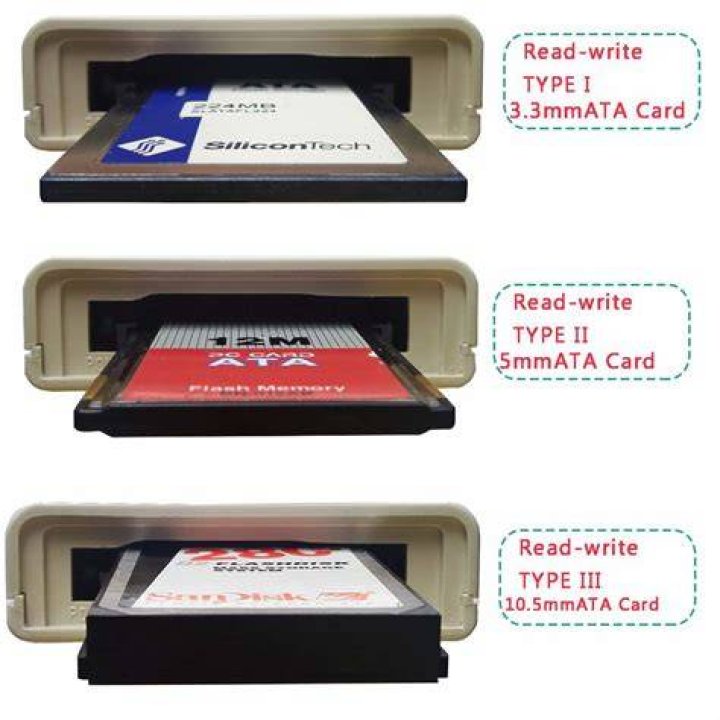

PCMCIA. Stands for "Personal Computer Memory Card International Association." PCMCIA was an organization that focused on creating expansion card standards for portable computers. There were three versions of the PCMCIA card standard: Type I - 3.3 mm thick - used for memory expansion.
What is the difference between pcmcia and card bus?
Cardbus cards usually have a copper looking strip across the top of the connector end of the card while PCMCIA cards don't. The performance difference between the two is similar to PCI vs. ISA. If you have Cardbus slots you can take either card but the Cardbus cards are much faster than PCMCIA.
Related Question Answers
What is a pcmcia card slot used for?
PCMCIA refers to the association and standards body. A PC card slot is an expansion slot often found in notebook computers that allows for the easy and quick addition of a host of different devices.What is TV common interface?
In Digital Video Broadcasting, the Common Interface (also called DVB-CI) is a technology which allows decryption of pay TV channels. The Common Interface is the connection between the TV tuner (TV or set-top box) and the module that decrypts the TV signal (CAM).What is a CAM card?
A conditional access module (CAM) is an electronic device, usually incorporating a slot for a smart card, which equips an Integrated Digital Television or set-top box with the appropriate hardware facility to view conditional access content that has been encrypted using a conditional access system.What is a CI module LG TV?
With a CI + module you receive digital television, without the need for a decoder, also called 'box'. You use the smartcard that you request from your provider.What is common interface Samsung Smart TV?
Active Member. Oct 23, 2018. In Digital Video Broadcasting, the Common Interface (also called DVB-CI) is a technology which allows decryption of pay TV channels. The Common Interface is the connection between the TV tuner (TV or set-top box) and the module (CAM) that decrypts the TV signal.What is a Cardbus adapter?
A cardbus adapter is any device which slides into the PCMCIA slot on the side of a laptop computer to provide a particular functionality or connectivity in addition to whatever is already built into that system by the manufacturer. PCMCIA predates CARDBUS or PC-Card.What is the ExpressCard slot on my laptop?
ExpressCard. ExpressCard, initially called NEWCARD, is an interface to connect peripheral devices to a computer, usually a laptop computer. The ExpressCard technical standard specifies the design of slots built into the computer and of expansion cards to insert in the slots.What is a card in a computer?
A computer card is an expansion device that provides an existing computer with certain added capabilities. Widely varying both in size, price, and purpose, these cards have the ability to make your computer perform functions or connect with external devices that it couldn't have previously.Is Pcmcia obsolete?
From 1990 onwards, the association published and maintained a sequence of standards for parallel communication peripheral interfaces in laptop computers, notably the PCMCIA card, later renamed to PC Card, and the ExpressCard (2003), all of them now technologically obsolete.What is the purpose of a riser card?
A riser card is a board that plugs into the system board and provides additional slots for adapter cards. Because it rises above the system board, it enables you to connect additional adapters to the system in an orientation that is parallel to the system board and save space within the system case.Where is the PC Card slot on a laptop?
Some cards might require that the laptop be turned off before inserting the card. A PC Card is inserted into the slot “holy” end first. In fact, it fits in only one way. Push the card in all the way until it fully docks with the connectors deep down inside the laptop.What are the different expansion cards?
Types of expansion cards in a computer- Interface card (ATA, Bluetooth, EIDE, FireWire, IDE, parallel, RAID, SCSI, serial, and USB).
- Modem.
- MPEG Decoder.
- Network Card.
- Sound Card.
- Video capture card.
- Video Card.
What is a smart card reader?
Smart card readers are used with smart cards which are a type of plastic technology card with a built-in chip used for. electronic processes including personal identification, access control, authentication, and financial transactions. Smart card readers obtain or “read” this type of data.In which of the following sizes are the ExpressCard modules available?
ExpressCard.org (no longer online) explains the difference between ExpressCard/34 and ExpressCard/54: There are two sizes of ExpressCard module. One is 34 mm wide (ExpressCard/34) and the other is 54 mm (ExpressCard/54). Both modules are 75 mm long and 5 mm high.What advantage do ExpressCard modules and USB adapters offer over expansion cards?
The advantage does of ExpressCard modules and U.S.B adapters offer over expansion cards is that it can connect a variety of devices to a computer.What is a PC card in Honda?
Several car CD players support MP3 files these days, but the advantage of the Honda Navi system is the presence of a big LCD screen, making the selection of songs far easier than a traditional CD player. It also supports memory cards through a PC Card (a.k.a. PCMCIA) slot, feature not found on regular CD players.What does pcmcia stand for?
Personal Computer Memory Card International Association
