Square hollow sections or square tubes are cold formed and welded from either hot rolled, cold rolled, pre-galvanized or stainless steel. For example: A round tube with an outside diameter of 50.8 is pressed into a 40x40 square tube..
Similarly one may ask, what is square hollow section used for?
Generally, the smaller the dimensions, the thinner the metal wall can be. Square Hollow Section (SHS) is often used in construction and industrial applications, as well as home handyman uses like fence posts or gate frames.
Secondly, what is hollow steel? A hollow structural section (HSS) is a type of metal profile with a hollow cross section. HSS is only composed of structural steel per code. HSS is sometimes mistakenly referenced as hollow structural steel. Rectangular and square HSS are also commonly called tube steel or box section.
Just so, is Box section or tube stronger?
The answer is round tube has a higher resistance to both flex and torsional twisting than square for a given weight. In the examples above, it is possible to see that you can build a chassis out of round tube that is both lighter and stronger than a square box section one.
How do you calculate square hollow weight?
MILD STEEL (SHS) SQUARE STEEL HOLLOW SECTION: For your information Kg/m refers to the Kilograms per Metre of the section, as an example a 4.200 Metre length of 40 x 40 x 3mm (SHS) Square Steel Hollow Section (3.45 Kg/m) would weigh (4.2 x 3.45) 14.49 Kg's Total.
Related Question Answers
What is rectangular hollow section?
Rectangular hollow sections or rec tubes are cold formed and welded from either hot rolled, cold rolled, pre-galvanized or stainless steel. For example: A round tube with an outside diameter of 101.6 is pressed into an 80x80 square tube.How is rectangular hollow section made?
The Electric resistance welding (ERW) process is used to create the box shape of a hollow steel section. A flat strip of steel is placed in a tube mill, which is then rolled into a circular tube shape using high-frequency induction process or contact weld.What are square and rectangular profiles?
Square and Rectangular Box Profiles. Square and rectangular box profiles are manufactured from steel tapes with high frequency welding with quality varieties as standard and in accordance with the norms.What is square pipe?
Square Tube. Square tubes are formed from coils and then ran through a series of dies. They are are welded from the inside to form their shape. Square tubes are generally used for maintenance and structural purposes. Square Tube is commonly available in Aluminum, Stainless Steel, Hot Rolled Steel and Cold Rolled Steel.How do you find the weight of a rectangular hollow?
If you know the area of the cross section (that you mentioned) then multiplying the area by the density, you will get the weight per foot of the member. and if you multiply that by the length/height of the member you will get the exact pounds or kilogram of the member.How is square tubing made?
Forming the Forms. Shaped tubes typically are produced by making a round tube and then forming it into a square, rectangular, or other shape. The cage forming process doesn't form round first, then the final shape; instead, the material goes from flat directly to the desired shape.How is HSS measured?

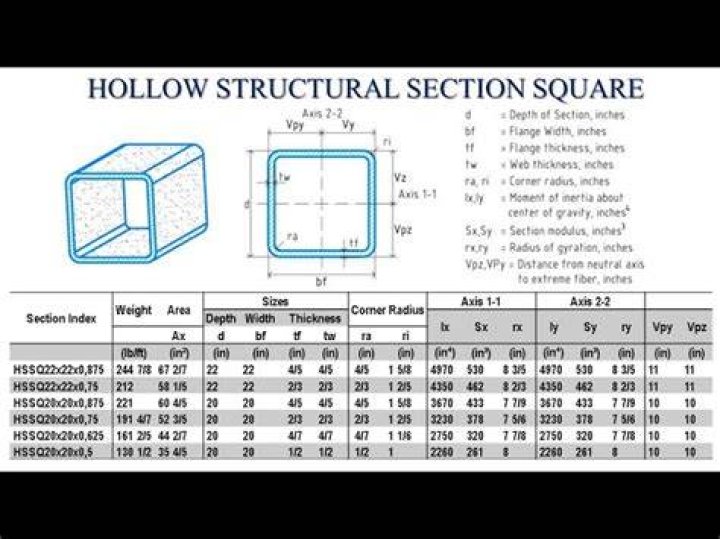

Square HSS have an square cross section except for rounded corners. Square HSS are designated by "HSS", overall outside dimension (in.), and wall thickness. HSS5x5x1/2 is nominally 5 in.What is a HSS column?
HSS. Hollow Structural Sections (HSS) are manufactured hollow steel sections, typically of circular, rectangular, or square cross-section. Popular uses include architecturally exposed structural steel, staggered truss and conventional truss structures, and basic column or vertical bracing elements.Whats stronger I beam or square tubing?
An I-beam is designed to give the best I by having a larger proportion of the cross-sectional area further away from the centerline of the beam. Rectangular tube with the longest dimension vertical is next and square is worst because the I for regular sections depends on the third power of the vertical dimension.Which is stronger pipe or tube?
Tubes are stronger than pipesDue to a variety of factors, tubes are inherently stronger than pipes. This means that steel tubes perform better overall in applications that require durability and strength.Is a circle or square stronger?
In civil engineering, if a column is circular in shape compared to a square of the same area, then the circle is stronger. However, if there is a beam spanning across two walls and the section is circular then it is weaker than a square section. Here the square/rectangular is stronger from stability considerations.What is stronger square or rectangle?
Assuming that the rectangular section's smallest dimension is equal to (or greater than) the square section's side and their thicknesses are equal, then the rectangular section will always be stronger than the square, for any load in any orientation.What is stronger hollow pipe or solid pipe?
Strength to weight ratio is better for a hollow pipe than a solid rod. The hollow shafts can withstand the same stress as that of solid shafts. Strength to weight ratio is better for a hollow pipe than a solid rod. This means a hollow cylinder is stronger than a rod of equal mass and the same material.Is square steel tubing stronger than round?
As far as resistance to bending forces, I.E. Axial Compressive resistance, Square tube is approx. 50-60% stronger as the same size and wall thickness round section, but it is also heavier as well.How strong is square steel tubing?
The most common (and probably cheapest) square structural tubing is made from A36 carbon steel with a maximum yield stress of 36,000 psi. There may be stronger grades, but you should probably check with (or google) steel suppliers. Max shear stress should be kept below 14,400 psi.Is hollow or solid shaft stronger?
In hollow shaft, the material at the centre is removed and spread at large radius. Therefore, hollow shafts are stronger than solid shaft having the same weight. The stiffness of the hollow shaft is more than the solid shaft with same weight.Are circular or rectangular columns better?
Circular columns are symmetric about any centroidal axis. Square columns have only 4 axes of symmetry. Thus it is less prone to buckling and may require slightly more reinforcement to carry the same load as a square column. Minimum number of bars required in a square column is 4 while for circular columns, it is 6.What type of steel is HSS?
High Speed Steel CompositionAnd HSS is high alloy steel with high carbon content. Its carbon content is about 0.7%-1.65%. And the alloy content is about 10%-25%. High-speed steel is widely used in all kinds of processing cutting tools.What is RHS beam?
Rectangular Hollow Section (RHS), also known as Cold Formed Rectangular Hollow, Rectangular Mild Steel Hollow, in stock for next day delivery.
