What is Bourdon manometer?
Grace Evans updates
Bourdon tube pressure gauges are the most common type in many areas and are used to measure medium to high pressures. They cover measuring spans from 600 mbar to 4,000 bar. The measuring element is a curved tube with a circular, spiral or coiled shape, commonly called a bourdon tube.
.
In this way, what is a Bourdon?
Bourdon. From Wikipedia, the free encyclopedia. Bourdon (Wiktionary entry) derives from the French for bumblebee, and may refer to: A bourdon (bell), the lowest bell in a set. A bourdon (organ pipe), a stopped organ pipe of a construction favored for low pitches.
what is a manometer and how does it work? The purpose of a manometer is to measure the pressure of a contained gas. It consists of a U-shaped glass tube with one end open to the atmosphere, mercury in the bottom of the U and the gas to be measured in the other side of the U-tube. When the gas is added, it will exert pressure on the mercury on the other side.
Secondly, what is a Bourdon tube made of?
Instrumentation System Elements The Bourdon tube is an almost rectangular or elliptical cross-section tube made from materials such as stainless steel or phosphor bronze.
What does a manometer measure?
A manometer is a scientific instrument used to measure gas pressures. Open manometers measure gas pressure relative to atmospheric pressure.
Related Question Answers
What is the principle of Bourdon tube?

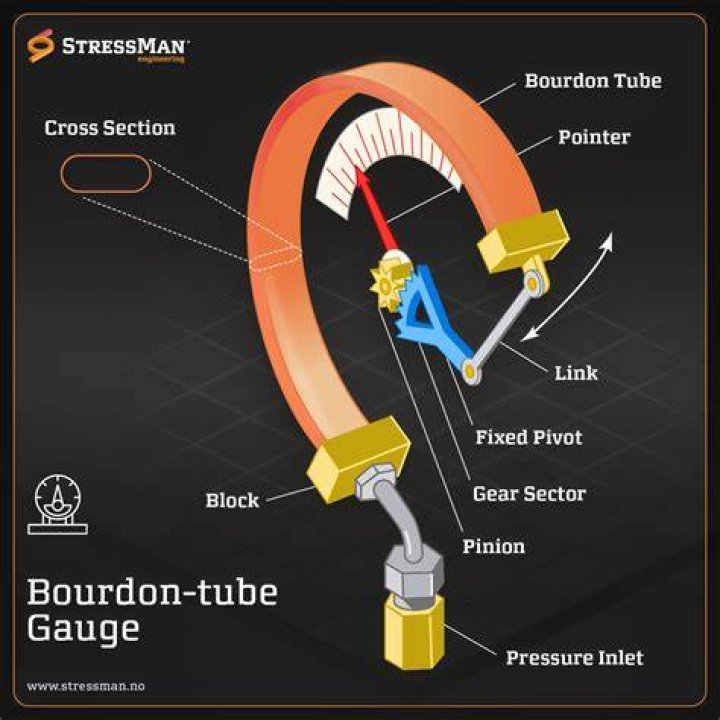

The Bourdon pressure gauge operates on the principle that, when pressurized, a flattened tube tends to straighten or regain its circular form in cross-section. The Bourdon tube comes in C, helical, and spiral shapes—although most gauges employ the C shape, which is the type of Bourdon pictured here.What is Bourdon gauge used for?
Bourdon tube pressure gauges. Bourdon tube pressure gauges are the most common type in many areas and are used to measure medium to high pressures. This tube moves outward when the pressure inside the tube is higher than the external pressure, and inward when the internal pressure is lower.How does the pressure gauge work?
Bourdon tubes function by taking the pressure and converting it into mechanical energy. This energy moves a dial in the gauge, displaying the current amount of pressure in the system. As pressure increases inside the tube, the force of the fluid attempts to straighten out the curved tube.What is C type Bourdon tube?
The C Type Bourdon Tube or element is most commonly used for pressure measurement, pressure transmission and control applications. The Tube which is oval in section is formed into an arc of 250 degree and hence the name is C type Bourdon Tube.What is a bellows pressure gauge?
BELLOWS GAUGE of the two A bellows gauge contains an elastic element that is a convoluted unit that expands and contracts axially with changes in pressure. The pressure to be measured can be applied to the outside or inside of the bellows.How do you measure pressure?
Pressure is typically measured in units of force per unit of surface area. Many techniques have been developed for the measurement of pressure and vacuum. Instruments used to measure and display pressure in an integral unit are called pressure meters or pressure gauges or vacuum gauges.Why are Bourdon tubes elliptical shaped?
Why is the use of an elliptical cross section tube in a Bourdon tube pressure gauge? Elliptical cross section ensures that it has different modulus of elasticity in its cross section. This is then calibrated across a dial to indicate the pressure. This was earliest way measure the pressure.What is a Bourdon tube used for?
an instrument for measuring the pressure of gases or liquids, consisting of a semicircular or coiled, flexible metal tube attached to a gauge that records the degree to which the tube is straightened by the pressure of the gas or liquid inside.What are the types of pressure gauges?
What Are the Different Types of Pressure Measurement?- Gauge – Reference to atmospheric pressure.
- Sealed – Referenced to a sealed chamber closed with atmospheric pressure (approximately 1bar).
- Absolute – The reference is a vacuum (0bar or no pressure).
- Differential – Where the sensor has two ports for the measurement of two different pressures.
What instrument measures air pressure?
barometer
What is absolute pressure transmitter?
An absolute pressure transmitter is used in applications where the pressure of a gas or liquid is isolated from atmospheric pressure changes, for example when testing a sealed pressure vessel for leaks over a long period of time.How is vacuum measured?
A torr is equal to the displacement of a millimeter of mercury (mmHg) in a manometer with 1 torr equaling 133.3223684 pascals above absolute zero pressure. Vacuum is often also measured on the barometric scale or as a percentage of atmospheric pressure in bars or atmospheres.What do you think of Bourdon tube?
Bourdon Tube. Bourdon Tubes are known for its very high range of differential pressure measurement in the range of almost 100,000 psi (700 MPa). The basic idea behind the device is that, cross-sectional tubing when deformed in any way will tend to regain its circular form under the action of pressure.What are gauges made of?
The socket is usually made of brass, steel, or stainless steel. Lightweight gauges sometimes use aluminum, but this material has limited pressure service and is difficult to join to the Bourdon tube by soldering or brazing. Extrusions and rolled bar stock shapes are most commonly used.What does psig stand for?
pounds per square inch gauge
What are the types of manometer?
Types of Manometer- U-Tube Manometer.
- Differential U-Tube Manometer.
- Inverted U-Tube Manometer.
- small Manometer.
- Inclined Manometer.
