What is cyclotron with diagram?
Ava Lawson updates
Cyclotron is a device used to accelerate charged particles to high energies. It was devised by Lawrence. Principle. Cyclotron works on the principle that a charged particle moving normal to a magnetic field experiences magnetic lorentz force due to which the particle moves in a circular path.
.
Simply so, what is cyclotron explain it?
Cyclotron can be defined as a type of particle accelerator in which charged particles accelerate outwards from the centre along a spiral path. These particles are held to a spiral trajectory by a static magnetic field and accelerated by a rapidly varying electric field.
Likewise, what is the purpose of a cyclotron? Cyclotron uses electrical power to accelerate charged particles in the spiral path. This collision of particles results in creation of radioactive isotopes which are further used in the field of medicine, industry and scientific research. They are even used in particle therapy to treat cancer.
what is cyclotron and its working?

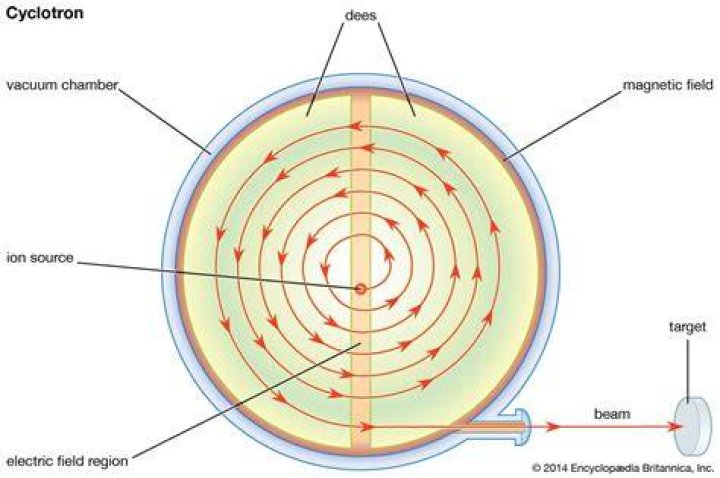

The working principle of a cyclotron involves the use of an electric field to accelerate charge particles across the gap between two D shaped magnetic field regions. The magnetic field is perpendicular to the paths of the charged particles makes them follow circular paths within two Dees.
What are the basic components of cyclotron?
Cyclotron Operation
- Components. The primary components of a cyclotron are the magnetic system, vacuum-sealed dee chambers, oscillating power system, ion injector, and focusing equipment.
- Particle Acceleration. A stream of charged particles was then introduced into the dees through a hole drilled in the yoke and magnet.
- Beam Control.
Related Question Answers
What is meant by cyclotron frequency?
Cyclotron frequencyThe cyclotron frequency or gyrofrequency is the frequency of a charged particle moving perpendicular to the direction of a uniform magnetic field B (constant magnitude and direction).Why cyclotron Cannot accelerate electrons?
A cyclotron cannot be used to accelerate electrons because electrons are of very small mass. Thus, the velocity will be increased to such a great extent that the electron will be thrown out of the step with the oscillating field. 2. A cyclotron cannot be used to accelerate neutral particles.How much does a cyclotron cost?
A commercially built cyclotron can cost anywhere from a few hundred thousand to a few hundred million dollars and take months to build. The core of the cyclotron is the chamber: two metal canisters shaped like the letter “D,” placed back to back to make a circle.How does cyclotron produced radionuclides?
The reactor produced radionuclides are generally neutron excess nuclides. They mostly decay by β− emission. The cyclotron produced radionuclides, on the other hand, are often neutron deficient and decay mainly by EC or β+ emission. They are especially suitable for diagnostic studies.How can we overcome the limitation of cyclotron?
As the mass increases, the orbital frequency decreases, and the particles cross the gap at times when the electric field decelerates them. To overcome this limitation, the frequency of the alternating voltage impressed on the dees can be varied to match that of the orbiting particles.What chapter is cyclotron in?
Cyclotron: It is a machine to accelerate charged particles or ions to high energies. There is a source of charged particles or ions at P which move in a circular fashion in the dees, D1 and D2, on account of a uniform perpendicular magnetic field B. An alternating voltage source accelerates these ions to high speeds.What is the difference between cyclotron and synchrotron?
The main difference is that a cyclotron accelerates the particles in a spiral since the magnetic field is constant, whereas the synchrotron adjusts the magnetic field to keep the particles in a circular orbit.What is Lorentz force in physics?
Lorentz force, the force exerted on a charged particle q moving with velocity v through an electric E and magnetic field B. The entire electromagnetic force F on the charged particle is called the Lorentz force (after the Dutch physicist Hendrik A. Lorentz) and is given by F = qE + qv × B.What are the limitations of cyclotron?
Limitations of Cyclotron. * Cyclotron cannot accelerate uncharged particles like neutrons. * Cyclotron cannot accelerate electrons because of its small mass. * It cannot accelerate positively charged particles with large mass due to relativistic effect.Can cyclotron accelerate negatively charged particles?
The cyclotron can only accelerate the positively charged particles but can't accelerate the negatively charged particles because of the increased relativistic mass. As the velocity of the electron increases, the relativistic mass also increases.Where are cyclotrons located?
The particles are injected into the center of this space. The dees are located between the poles of a large electromagnet which applies a static magnetic field B perpendicular to the electrode plane.What is the resonance condition of a cyclotron?
The frequency of the applied voltage is kept exactly the same as the frequency of revolution of the proton, then every time the proton reaches the gap between the two dees, the electric field is reversed And proton receive a push and finally it accquires very high energy. This is called Cycloton's Resonance Condition.What is the required radius of a cyclotron?
approximately 54 cm
How does a particle accelerator work?
A particle accelerator is a machine that accelerates elementary particles, such as electrons or protons, to very high energies. On a basic level, particle accelerators produce beams of charged particles that can be used for a variety of research purposes. Circular accelerators propel particles around a circular track.What is medical cyclotron?
Medical Cyclotron. A cyclotron is a machine used to make relatively short lived radioisotopes (radioactive atoms) that can be used for medical imaging and research.Who discovered electron?
Thomson
