What side is Bank 1 on Ford?
Ava Hall news

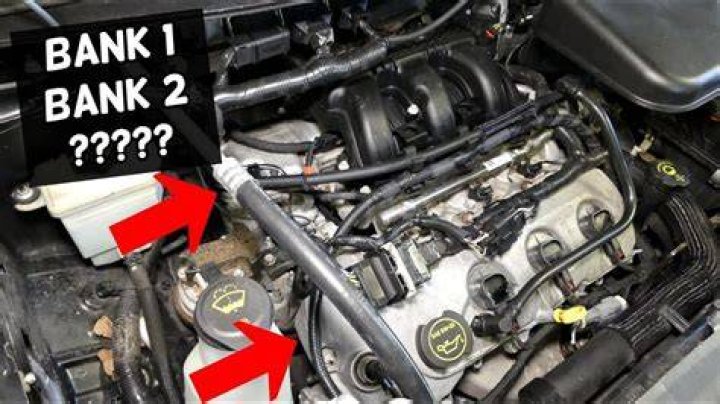

Bank 1 is the right (passenger) side. Sensor 1 is the O2 sensor before the catalytic converter.
.
Correspondingly, which side is Bank 1 on a Ford f150?
Starting at the front, passenger side, the cylinder closest to the radiator is #1. The cylinder directly behind it is #2, then #3, and finally #4 is located against the passenger side firewall.
Also, what side is Bank 1 on a Ford Expedition? On V6 and V8 engines, Sensor 1 will always be on the SAME side as the Number ONE cylinder in the engine's firing order. On Ford V6 and V8 engines, for example, cylinder number one is typically the RIGHT front cylinder on the passenger side in a rear-wheel drive car or truck.
Just so, is Bank 1 left or right?
The left and right side of the vehicle are always defined as being viewed while sitting in the driver's seat. In the automotive world, Bank 1 refers to the number one cylinder bank, which means it is the bank where the number one cylinder is located. On an inline four cylinder engine, this is the only cylinder bank.
What does Bank 1 mean on a car?
Quite simply, Bank 1 refers to the side of the engine that has the #1 cylinder. Bank 2 is the opposite side of the engine. Even on cars with a tranverse mounted engine, bank #1 is referring to downstream from the side of the engine with cylinder #1.
Related Question Answers
Where is bank 1 sensor 1 located?
Bank 1 Sensor 1 = This O2 sensor is located right before the catalytic converter, on the side with the Cylinder #1 that is Bank 1. Bank 1 Sensor 2 = This O2 sensor is located right after the catalytic converter, on the side with the Cylinder #1 that is Bank 1.Is bank 1 sensor 1 upstream or downstream?
The front oxygen sensor before the catalytic converter is usually called 'upstream' or Sensor 1. The rear oxygen sensor installed after the catalytic converter is called 'downstream' or Sensor 2. Therefore, in an in-line 4-cylinder engine, the term "Bank 1, Sensor 1" simply refers to the front oxygen sensor.Which side is Bank 2 on a Ford?
The bank 2 sensor 2 is on your right when facing the truck from the front or drivers side. The sensor is in the exhaust after the catalyst.What is the firing order on a Ford?
The firing order for older Ford V8 engines (289, 302, 390, 427, 428, 460) is 1-5-4-2-6-3-7-8. The firing order for older Ford 351, 5.0L EFI, 5,4L and 5.8L V8 engines is 1-3-7-2-6-5-4-8. The firing order for 1990-2014 Ford modular 4.6L modular V8 engines is 1-3-7-2-6-5-4-8.How are the cylinders numbered on a Ford v8?
Ford Motor Company numbers its cylinders along each side from front to back. When looking at the engine, start on your actual left-hand side with the cylinder closest to you as number one, followed by two, three and four.Where is the o2 sensor on a 2010 Ford f150?
Where are the O2 sensors located on my 2010 Ford F-150 5.4L? This vehicle engine has 4 O2 sensors. They are all located in the exhaust system. There is one near each exhaust manifold and they are labeled HO2S1-1 and HO2S 2-1.How do you change a coil on a 5.4 Triton?
How to Replace The Coils On a Ford 5.4L Triton V8- Remove the retaining bolts that hold the fuel rail.
- Remove the bolt that holds the coil to the intake.
- Pull the coil from the plug, using a twisting motion.
- Apply a bit of dielectric grease to the inside of the coil boot.
- Replace the coil bolt and tighten it to 50 inch-pounds, using a torque wrench.
How can I tell which o2 sensor is bad?
Here are some of the most common signs that your oxygen sensor is bad.- A Glowing Check Engine Light. The bright orange Check Engine light in your dashboard will usually glow if you have a bad oxygen sensor.
- Bad Gas Mileage.
- An Engine That Sounds Rough.
- An Emissions Test Failure.
- An Older Vehicle.
